Motorcycle: KTM - 85 SX 17-14(2018) MX Specifications, Characteristics and Information

click to add for comparisonADD TO COMPARISONclick to visit the importer / make websiteIMPORTER/MAKERclick to view information for the category MXCATEGORY / TYPEclick to see more information for the make KTMMAKE
Review this first!
Price5.750 €Displacement84,90 ccHorsepower0,00 psTorque0,00 NmWeight0,00 kg
sample rider compared to the motorcycle dimensions

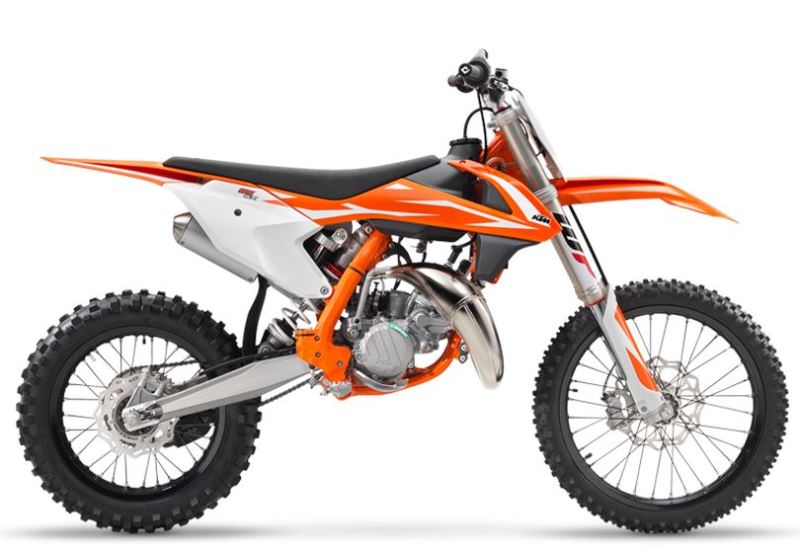

Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo

Moto Specifications:

Help / Instructions - click here
Instructions Column MIN: The smallest value of a specification item for the MX motorcycles, MAX: The largest value for the MX motorcycles, AVG/#: The average MX / number of motorcycles MX that have this specification item recorded
Green background for the values that are the same with the MIN, MAX or AVG
Attention! The specification items you see are the ones we have recorded, if some are missing, that doesnt mean that the specific motorcycle doesnt have it. It may mean that we either didnt find it at the manufacturer / maker / importer website, or that you are not a member to see more specification items like members do, or that we didnt complete yet the research for the specific motorcycle. If you know some missing specification item, or you know a value to be wrong, you can help us by letting us know so we can correct it.
Importer
MINMAXAVG/#
Final euro price (with VAT)
5.750,00
3.450,0010.490,007.421,25/208
Waranty (months)
24
242424,00/105
Engine
MINMAXAVG/#
Displacement (cm3)
84,90
49,00477,50239,28/231
Type
2 stroke
Cylinders #
1
121,01/209
Valves / Cylinder
1 (high precision exhaust control valve. Reed intake)
142,42/171
Bore (mm)
47,00
39,50100,0068,48/218
Stroke (mm)
48,95
40,0072,0054,93/218
Cooling
Watercooling
Fuel delivery
Carburator
Ignition
Digital (Moric Digital 2M1)
Lubrication System
Oil-petrol mix
Starter
NO
Kick starter
YES
Cylinder Material
Aluminum Cast
Chasis
MINMAXAVG/#
Caster
24,00
24,0029,0026,41/106
Color (Color family)
Black, White, Orange, Gray
Color brightness
Light Color, Neutral
Color Intensity
Strong
Color Type
Matte
Frame Type
Tube (Made of top quality chromoly steel with a lightweight, bolt-on aluminum rear subframe)
Material
Steel
Swingarm Material
Aluminum
Swingarm Type
Twin sided
Weight without liquids (kg)
67,00
41,50165,0088,55/122
Transmission
MINMAXAVG/#
Clutch Type
Manual, Wet, Multiple-disk
Final Drive
Chain
Gears #
6
165,21/233
Fuel
MINMAXAVG/#
Fuel tank capacity (l)
5,20
2,3013,306,57/231
Exchaust
MINMAXAVG/#
Exhausts #
1
121,05/229
Material
Aluminum
Seat
MINMAXAVG/#
Persons #
1
121,25/198
Distance from ground (mm)
855,00
684,00998,00917,60/212
Material
Vinil
Suspension
MINMAXAVG/#
Front Adjustments
Spring preload
Front Diameter (mm)
43,00
33,0050,0045,60/202
Front Travel (mm)
280,00
205,00315,00288,12/211
Front Type
Upside down Telescopic Fork
Rear Adjustments
Compression, Rebound, Spring preload
Rear Number #
1 (PDS monoshock)
111,00/233
Rear Travel (mm)
305,00
3,00335,00294,95/199
Rear Type
Shock absorbers
Brakes
MINMAXAVG/#
Front ABS
NO
Front Number #
1
121,02/233
Front Diameter (mm)
240,00
160,00320,00246,47/231
Front Caliper Pistons #
4 (radial calipers )
142,15/153
Front Type
Blossom, Disk
Rear ABS
NO
Rear Number #
1
111,00/233
Rear Diameter (mm)
210,00
160,00296,00220,94/231
Rear Caliper Pistons #
2 (radial calipers )
121,23/153
Rear Brake Type
Blossom, Disk
Combined braking
ΝΟ
Tires
MINMAXAVG/#
Front Dimensions
70/100-17 (70/100-17 40M TT, MAXXIS Maxxcross SI)
Rear Dimensions
90/100-14 (90/100-14 49M TT, MAXXIS Maxxcross SI)
Wheels
MINMAXAVG/#
Front Wheels #
1
111,00/233
Front Wheel Material
Aluminum Alloy
Front Diameter (mm)
431,80 (17 in)
254,00533,40501,76/224
Rear Wheels #
1
111,00/233
Rear Wheel Material
Aluminum Alloy
Back Diameter (mm)
355,60 (14 in)
228,60482,60443,38/226
Dimensions
MINMAXAVG/#
Wheelbase (mm)
1.290,00
1.032,001.550,001.400,83/206
Distance from ground (mm)
352,00
252,00393,00343,83/212
