Motorcycle: KTM - 1290 SUPER DUKE R(2016) STREET Specifications, Characteristics and Information

click to add for comparisonADD TO COMPARISONclick to visit the importer / make websiteIMPORTER/MAKERclick to view information for the category STREETCATEGORY / TYPEclick to see more information for the make KTMMAKEClick to view the pricelist of the make KTMPRICES
Review this first!
Price16.900 €Displacement1.301,00 ccHorsepower170,31 psTorque144,00 NmWeight204,00 kg
sample rider compared to the motorcycle dimensions

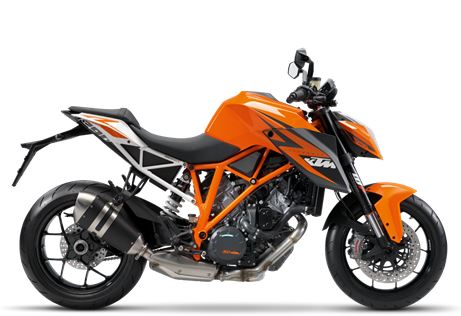

Motorcycle Photo
Motorcycle Photo
Motorcycle Photo

Quick Info and Review:

Ktm 2016 1290 SUPER DUKE R is a Street Motorcycle. With
Model Year: • 2020 • 2019 • 2018 • 2017 • 2016 • STREET

Moto Specifications:

Help / Instructions - click here
Instructions Column MIN: The smallest value of a specification item for the STREET motorcycles, MAX: The largest value for the STREET motorcycles, AVG/#: The average STREET / number of motorcycles STREET that have this specification item recorded
Green background for the values that are the same with the MIN, MAX or AVG
Attention! The specification items you see are the ones we have recorded, if some are missing, that doesnt mean that the specific motorcycle doesnt have it. It may mean that we either didnt find it at the manufacturer / maker / importer website, or that you are not a member to see more specification items like members do, or that we didnt complete yet the research for the specific motorcycle. If you know some missing specification item, or you know a value to be wrong, you can help us by letting us know so we can correct it.
Importer
MINMAXAVG/#
Final euro price (with VAT)
16.900,00
1.295,0042.990,0010.283,24/644
Waranty (months)
24
04824,42/426
Performance
MINMAXAVG/#
Horsepower (ps)
170,31 (127 kw)
9,50214,9489,68/656
Power To Weight Ratio ps/kg
0,83 (*Calculated based on estimated full weight +- 5%)
0,071,160,44/647
Horsepower at RPM
8.870
6.00015.0009.265,69/641
Torque (Nm)
144,00
3,40166,8072,89/652
Engine
MINMAXAVG/#
Displacement (cm3)
1.301,00
50,001.679,00707,38/671
Type
4 stroke
Cylinders #
2
142,31/669
Valves / Cylinder
4
243,68/607
Cylinder configuration
V
Overhead camshafts
2
121,84/524
Overhead camshaft type
DOHC
Bore (mm)
108,00
0,00116,0079,33/605
Stroke (mm)
71,00
0,0084,5060,89/605
Cooling
Watercooling
Fuel delivery
Fuel Injection (Keihin EMS with RBW, twin ignition)
Ignition
Εlectronics
Lubrication System
Oil (Forced oil lubrication with 3 oil pumps)
Starter
YES
Kick starter
NO
Chasis
MINMAXAVG/#
Color (Color family)
Black, White, Red, Orange, Gray
Color brightness
Light Color, Dark Color
Color Intensity
Strong, Light
Frame Type
Tube
Material
Steel (Chromium-Molybdenum steel trellis frame)
Weight with liquids (kg)
204,00 (Estimated +-8kg)
100,00310,00192,75/663
Weight without liquids (kg)
189,00
94,00286,00176,64/641
Transmission
MINMAXAVG/#
Clutch Type
single-disc with integrated anti-vibration buffer (PASC (TM) slipper clutch, hydraulically actuated), Wet
Final Drive
Chain
Gears #
6
475,84/649
Battery
MINMAXAVG/#
Ah
11,20
3,5014,009,18/177
Volts (V)
12,00
8,60225,0013,13/183
Fuel
MINMAXAVG/#
Fuel tank capacity (l)
18,00
5,5023,0015,70/661
Instruments
MINMAXAVG/#
Fuel level indicator
Electronic
Oil Level
Light
Speedometer
Electronic
Tachometer
Analoque
Temperature indicator
Electronic
Exchaust
MINMAXAVG/#
Exhausts #
1
041,43/658
Material
Stainless
Catalyst converter
YES
Seat
MINMAXAVG/#
Persons #
2
121,98/663
Distance from ground (mm)
835,00
670,00881,00803,69/643
Suspension
MINMAXAVG/#
Front Adjustments
Compression, Rebound, Spring preload
Front Diameter (mm)
48,00
31,00140,0042,61/520
Front Travel (mm)
125,00
12,00210,00126,91/549
Front Type
Upside down Telescopic Fork (WP USD Ø 48 mm)
Rear Adjustments
Compression, Rebound, Spring preload
Rear Number #
1 (WP monoshock)
121,12/662
Rear Travel (mm)
156,00
40,00190,00124,82/534
Rear Type
Shock absorbers
Brakes
MINMAXAVG/#
Front ABS
YES (Bosch 9M+ two-channel ABS (incl. Supermoto mode, disengageable))
Front Number #
2
121,65/672
Front Diameter (mm)
320,00
200,00330,00301,64/647
Front Caliper Pistons #
4 (2 x Brembo monoblock four-piston radial fixed calliper, brake discs, floating)
163,27/587
Front Type
Disk, Floating
Rear ABS
YES (Bosch 9M+ two-channel ABS (incl. Supermoto mode, disengageable))
Rear Number #
1
111,00/667
Rear Diameter (mm)
240,00
22,00298,00234,60/647
Rear Caliper Pistons #
2 (Brembo twin-piston fixed calliper, brake disc)
141,51/544
Rear Brake Type
Disk
Combined braking
ΝΟ
Tires
MINMAXAVG/#
Front Dimensions
120/70-17
Rear Dimensions
190/55-17
Wheels
MINMAXAVG/#
Front Wheels #
1
111,00/668
Front Diameter (mm)
431,80 (17 in)
18,00482,60429,24/669
Rear Wheels #
1
111,00/668
Back Diameter (mm)
431,80 (17 in)
18,00457,20426,24/669
Dimensions
MINMAXAVG/#
Wheelbase (mm)
1.482,00 (± 15 mm)
1.180,001.700,001.430,14/654
Distance from ground (mm)
140,00
120,00200,00149,22/502
