Motorcycle: HONDA - CB 500 X ABS(2017) ON-OFF Specifications, Characteristics and Information

click to add for comparisonADD TO COMPARISONclick to visit the importer / make websiteIMPORTER/MAKERclick to view information for the category ON-OFFCATEGORY / TYPEclick to see more information for the make HONDAMAKEClick to view the pricelist of the make HONDAPRICES
Review this first!
Price6.960 €Displacement471,00 ccHorsepower48,00 psTorque43,00 NmWeight196,00 kg
sample rider compared to the motorcycle dimensions

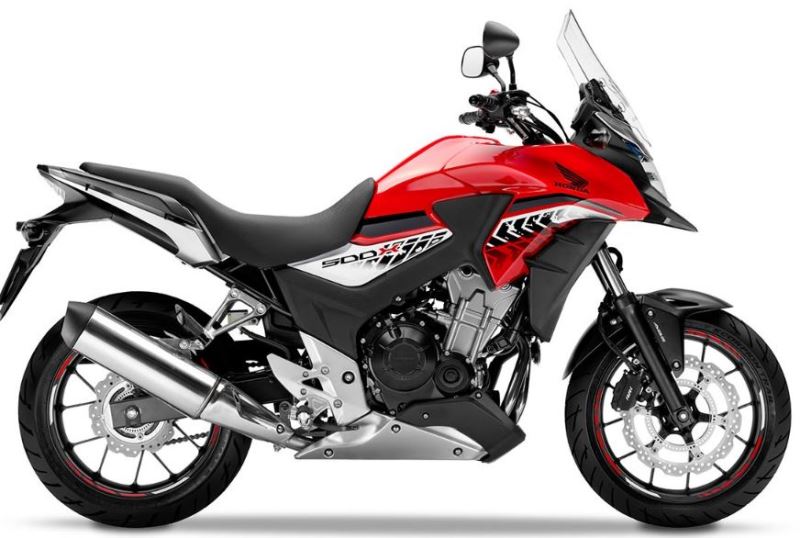

Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo

Quick Info and Review:

Honda 2017 CB 500 X ABS is an On-Off Motorcycle. With
Model Year: • 201720162015ON-OFF
Differences from previous year (2016): price same at 6.960

Moto Specifications:

Help / Instructions - click here
Instructions Column MIN: The smallest value of a specification item for the ON-OFF motorcycles, MAX: The largest value for the ON-OFF motorcycles, AVG/#: The average ON-OFF / number of motorcycles ON-OFF that have this specification item recorded
Green background for the values that are the same with the MIN, MAX or AVG
Attention! The specification items you see are the ones we have recorded, if some are missing, that doesnt mean that the specific motorcycle doesnt have it. It may mean that we either didnt find it at the manufacturer / maker / importer website, or that you are not a member to see more specification items like members do, or that we didnt complete yet the research for the specific motorcycle. If you know some missing specification item, or you know a value to be wrong, you can help us by letting us know so we can correct it.
Importer
MINMAXAVG/#
Final euro price (with VAT)
6.960,00
1.990,0027.100,0012.958,01/397
Waranty (months)
24
244824,87/275
Performance
MINMAXAVG/#
Horsepower (ps)
48,00
10,30162,2294,89/405
Power To Weight Ratio ps/kg
0,24 (ps / full weight in kg)
0,070,780,41/398
Horsepower at RPM
8.500
4.75011.5008.323,39/388
Torque (Nm)
43,00
8,80143,0088,70/396
Torque at RPM
7.000
62510.0006.546,92/386
Combined Consumption (l/100km)
3,39
2,006,804,41/252
Engine
MINMAXAVG/#
Displacement (cm3)
471,00
124,001.301,00878,02/413
Type
4 stroke
Cylinders #
2
142,22/408
Cylinder configuration
Inline
Overhead camshafts
2
121,82/346
Overhead camshaft type
DOHC
Bore (mm)
67,00
53,50108,0086,70/389
Stroke (mm)
66,80
48,0084,0068,68/389
Compression (X)
10,70
9,0013,0011,40/365
Compression (Y)
1,00
1,001,001,00/365
Cooling
Watercooling
Fuel delivery
Fuel Injection
Ignition
Εlectronics
Lubrication System
Oil
Starter
YES
Kick starter
NO
Chasis
MINMAXAVG/#
Caster
26,30
0,0063,3025,85/222
Color (Color family)
Black, White, Silver, Red, Yellow, Gray
Color brightness
Light Color, Dark Color
Color Intensity
Strong, Light
Color Type
Matte, Metal
Swingarm Type
Twin sided
Trail (mm)
109,00
86,20145,80107,85/294
Weight with liquids (kg)
196,00
111,00294,00228,69/401
Weight without liquids (kg)
184,00 (Estimated +-5kg)
123,00272,00210,22/395
Transmission
MINMAXAVG/#
Clutch Type
Manual
Final Drive
Chain
Gears #
6
565,94/410
Battery
MINMAXAVG/#
Ah
8,60 (12 V - 8,6 Ah (10 HR) / 9,1 Ah (20 HR))
6,0019,0011,08/158
Volts (V)
12,00
12,0012,0012,00/162
Fuel
MINMAXAVG/#
Fuel tank capacity (l)
17,50
6,0032,0019,55/409
Handle bar
MINMAXAVG/#
Handle bar locking
Central (from the central switch)
Instruments
MINMAXAVG/#
Computer
Clock, Consumption, Distance counter
Fuel level indicator
Electronic
Gear display
NO
Oil Level
Light
Overheat light
YES
Reserve fuel light
YES
Speedometer
Electronic
Tachometer
Electronic
Temperature indicator
Light
Turning signal light
Two lights
Exchaust
MINMAXAVG/#
Exhausts #
1
131,14/395
Exhaust emmissions
Euro 4
Seat
MINMAXAVG/#
Persons #
2
222,00/411
Distance from ground (mm)
810,00
760,00900,00839,90/406
Material
Vinil
Suspension
MINMAXAVG/#
Front Diameter (mm)
41,00
33,00159,0045,09/377
Front Type
Telescopic Fork
Rear Adjustments
Spring preload
Rear Number #
1
121,03/408
Rear Type
Shock absorbers
Lights
MINMAXAVG/#
Headlights
1
141,72/246
Headlights type
Led
Rear light
Led
Turn lights type
Standard
Brakes
MINMAXAVG/#
Front ABS
YES
Front Number #
1
121,78/413
Front Diameter (mm)
320,00
220,00330,00307,32/401
Front Caliper Pistons #
2
042,95/351
Front Type
Blossom, Disk
Rear ABS
YES
Rear Number #
1
121,01/413
Rear Diameter (mm)
240,00
1,00282,00255,19/400
Rear Brake Type
Blossom, Disk
Combined braking
ΝΟ
Tires
MINMAXAVG/#
Front Dimensions
120/70-17
Rear Dimensions
160/60-17
Wheels
MINMAXAVG/#
Front Wheels #
1
111,00/412
Front Wheel Material
Aluminum
Front Diameter (mm)
431,80 (17 in)
304,80533,40478,12/408
Rear Wheels #
1
111,00/412
Rear Wheel Material
Aluminum
Back Diameter (mm)
431,80 (17 in)
54,61457,20429,70/407
Dimensions
MINMAXAVG/#
Length (mm)
2.095,00
1.405,002.370,002.225,99/376
Wheelbase (mm)
1.420,00
1.315,001.620,001.525,50/404
Width (mm)
830,00
780,001.000,00891,12/368
Height (mm)
1.360,00
990,001.570,001.385,84/389
Distance from ground (mm)
170,00
135,00270,00192,73/283
