Motorcycle: HARLEY DAVIDSON - Dyna Fat Bob(2016) CUSTOM Specifications, Characteristics and Information

click to add for comparisonADD TO COMPARISONclick to visit the importer / make websiteIMPORTER/MAKERclick to view information for the category CUSTOMCATEGORY / TYPEclick to see more information for the make HARLEY DAVIDSONMAKEClick to view the pricelist of the make HARLEY DAVIDSONPRICES
Review this first!
Price19.590 €Displacement1.690,00 ccHorsepower79,99 psTorque133,00 NmWeight321,00 kg
sample rider compared to the motorcycle dimensions

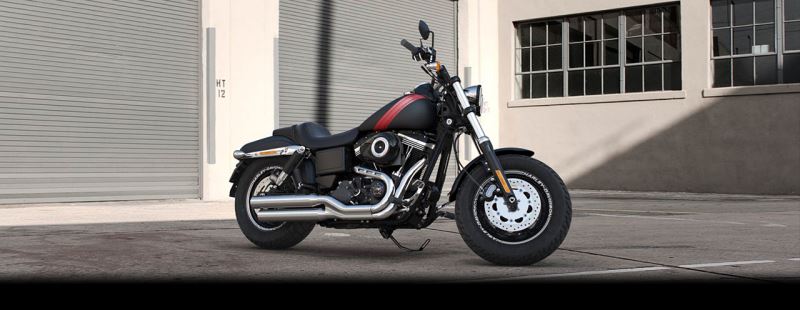

Motorcycle Photo
Motorcycle Photo
Motorcycle Photo
Motorcycle Photo

Quick Info and Review:


A 'Status' motorcycle, with a high price, aiming the few but fortunate... at 19.590 € which is 4.483 € higher than the average and 19.360 € lower than the category maximum (average category:15.107 €)
with safety features like Front ABS and Rear ABS, 2 front brake disks
A low seat height at 69cm, for an average height person (175cm), for a more comfortable ride especially in city environments
Harley Davidson 2016 DYNA FAT BOB is a Custom Motorcycle. With
engine and performance, large engine size for its category 1.690cc
Power to Weight ratio 0,25ps/kg
high horsepower 79,99ps (above category average:60,94ps)
high torgue 133,00Nm (above category average:102,30Nm)
Model Year: • 20162015CUSTOM
Differences from previous year (2015): price same at 19.590 , torque increased by 0,76% (from 132,00 to 133,00)

Moto Specifications:

Help / Instructions - click here
Instructions Column MIN: The smallest value of a specification item for the CUSTOM motorcycles, MAX: The largest value for the CUSTOM motorcycles, AVG/#: The average CUSTOM / number of motorcycles CUSTOM that have this specification item recorded
Green background for the values that are the same with the MIN, MAX or AVG
Attention! The specification items you see are the ones we have recorded, if some are missing, that doesnt mean that the specific motorcycle doesnt have it. It may mean that we either didnt find it at the manufacturer / maker / importer website, or that you are not a member to see more specification items like members do, or that we didnt complete yet the research for the specific motorcycle. If you know some missing specification item, or you know a value to be wrong, you can help us by letting us know so we can correct it.
Importer
MINMAXAVG/#
Final euro price (with VAT)
19.590,00 (for VIVID BLACK,SOLID COLOUR:19990)
1.200,0043.190,0014.113,48/438
Waranty (months)
24
244824,24/295
Performance
MINMAXAVG/#
Horsepower (ps)
79,99 (78,90 hp )
0,00167,0058,57/350
Power To Weight Ratio ps/kg
0,25 (ps / full weight in kg)
0,030,530,24/329
Horsepower at RPM
5.000
4.40010.0006.811,12/314
Torque (Nm)
133,00
7,80221,0092,94/421
Torque at RPM
3.250
2.1009.0004.207,34/413
Combined Consumption (l/100km)
5,60
2,007,504,82/290
Engine
MINMAXAVG/#
Displacement (cm3)
1.690,00
49,502.458,001.021,94/472
Type
4 stroke (Twin Cam 103™)
Cylinders #
2
141,87/467
Cylinder configuration
V
Overhead camshafts
1
121,51/292
Overhead camshaft type
SOHC
Bore (mm)
98,40
44,00112,0089,70/409
Stroke (mm)
111,10
41,00114,0085,59/409
Compression (X)
9,60
8,4012,069,95/381
Compression (Y)
1,00
1,001,001,00/381
Cooling
Aircooling
Fuel delivery
Fuel Injection (Electronic Sequential Port Fuel Injection (ESPFI))
Lubrication System
Oil
Starter
YES
Kick starter
NO
Chasis
MINMAXAVG/#
Caster
29,00
22,7054,0029,99/249
Color (Color family)
Black, Silver, Red, Blue, Brown
Color brightness
Light Color, Dark Color
Color Intensity
Strong, Light
Frame Type
Tube
Material
Steel
Trail (mm)
125,00
75,00196,00128,58/331
Turn radius Left (radius)
31,00
23,4038,0031,25/96
Turn radius Right (radius)
30,00
23,4038,0031,06/98
Weight with liquids (kg)
321,00
83,00564,00256,65/452
Weight without liquids (kg)
306,00
78,00546,00240,84/452
Transmission
MINMAXAVG/#
Clutch Type
Multidisk Mechanical, Wet
Final Drive
Belt
Gears #
6
365,45/442
Fuel
MINMAXAVG/#
Fuel tank capacity (l)
18,90
7,9024,0015,93/442
Instruments
MINMAXAVG/#
Speedometer
Analoque
Exchaust
MINMAXAVG/#
Exhausts #
2
021,65/467
Seat
MINMAXAVG/#
Persons #
2
031,84/463
Distance from ground (mm)
690,00
622,00870,00730,92/422
Suspension
MINMAXAVG/#
Front Adjustments
Spring preload
Front Diameter (mm)
49,00
32,0050,0042,04/249
Front Type
Telescopic Fork
Rear Number #
2
121,69/459
Rear Type
Shock absorbers
Brakes
MINMAXAVG/#
Front ABS
YES
Front Number #
2
121,36/472
Front Diameter (mm)
299,00
49,00330,00298,80/347
Front Caliper Pistons #
4
162,98/374
Front Type
Disk
Rear ABS
YES
Rear Number #
1
121,01/470
Rear Diameter (mm)
292,00
1,00316,00257,78/321
Rear Caliper Pistons #
2
041,94/332
Rear Brake Type
Disk
Combined braking
ΝΟ
Tires
MINMAXAVG/#
Front Dimensions
130/90-16 (16 /Dunlop® D427F 130)
Rear Dimensions
180/70-16 (16 /Dunlop® D427 180 )
Wheels
MINMAXAVG/#
Front Wheels #
1
111,00/473
Front Diameter (mm)
406,40 (16in)
304,80533,40451,04/462
Rear Wheels #
1
121,04/473
Back Diameter (mm)
406,40 (16in)
304,80482,60422,41/460
Front Type
Aluminum Alloy
Rear Type
Aluminum Alloy
Dimensions
MINMAXAVG/#
Length (mm)
2.400,00
1.800,002.670,002.266,32/437
Wheelbase (mm)
1.620,00
1.255,001.755,001.539,54/445
Distance from ground (mm)
125,00
95,00240,00137,04/345
